Orange Smooth Polyurethane Round Belt PU Round Belt SGS ISO9001: 2008 Certified Diameter 2-20mm

  • Orange Smooth Polyurethane Round Belt PU Round Belt SGS ISO9001: 2008 Certified Diameter 2-20mm
Quantità di ordine minimo 1.000
Prezzo 0.5

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Modello n. Dia 2mm-20mm Tipo Cinghia del giro dell'unità di elaborazione
Materiale pu Materiale interno pu
Superficie Listo o ruvido Resistenza alla trazione 55N/mm2
Diametro 2 ~ 20 mm Durezza 85 a ~ 90 a
allungamento del tasso 1.5-3% Il minimo raggio 20-160 mm
Tensione massima 0,3-31,3 kg Lungo rotolo 30-400 m
Resistenza all'abrasione Eccezionale Lacerare la forza Alto
Resistenza all'ambiente Alto
Evidenziare

SGS ISO9001: 2008 Certified Polyurethane Round Belt

,

Diameter 2-20mm PU Round Belt

,

Orange Polyurethane Round Belt
Lasciate un messaggio
Descrizione di prodotto

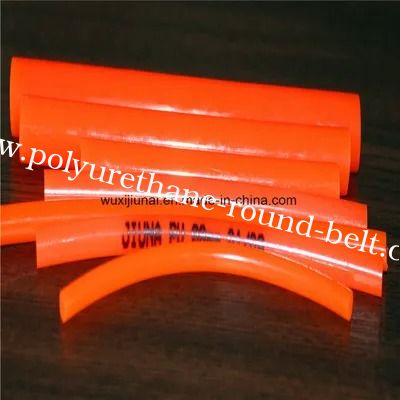

Orange Smooth Polyurethane Round Belt

Our premium Polyurethane round belts are designed for transmission applications in industrial machinery and product conveyance systems. These belts feature a durable poly cord construction and are available with both smooth and rough surfaces to suit various operational requirements.

Product Features
  • Outstanding abrasion resistance
  • High tensile and tear strength
  • Resistance to oils, fuels, and oxygen
  • Excellent weatherability and high impact resistance
  • Low compression set for long-term performance
  • Available with polyester, nylon, or fiber reinforcement
  • Can be welded to form O-rings
Applications

Ideal for use in:

  • Newspaper conveying systems
  • Packaging machinery
  • Ceramic and stoneware processing plants
  • Floor and roof tile conveyance
  • Wood working machinery
  • Textile machines
  • Paper industry equipment
  • Food grading and processing machines
Technical Specifications
Items NO. Φ Least Radius of Gyration Stretching Rate Maximum Tensile Rate Hardness Length of Roll
DIA(mm) In mm % Kg Lbs Shore(A) Roll(m)
2mm 0.79 20 1.5-3% 0.3 0.7 95 400
2.5mm 0.87 22 1.5-3% 0.4 0.9 95 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 400
3.5mm 1.18 30 1.5-3% 0.95 2.1 90 400
4mm 1.38 35 1.5-3% 1.2 2.7 90 200
5mm 1.57 40 1.5-3% 2 4.3 90 100
6mm 1.97 50 1.5-3% 3.2 7 90 100
7mm 2.17 55 1.5-3% 4.1 9 90 100
8mm 2.56 65 1.5-3% 5 11 90 100
9mm 2.95 75 1.5-3% 6.8 15 90 50
10mm 3.94 100 1.5-3% 7.7 17 90 50
12mm 3.94 100 1.5-3% 12.2 27 90 30
15mm 4.72 120 1.5-3% 17.7 39 90 30
18mm 5.71 145 1.5-3% 25.4 56 90 30
20mm 6.3 160 1.5-3% 31.3 69 90 30

Note: We also supply connecting tools and accessories for polyurethane belts, including clamps, electric irons, and knives. Connection methods include hot press welding and overlap welding.
